Organize Your Truck Bed Without Losing Bed Access

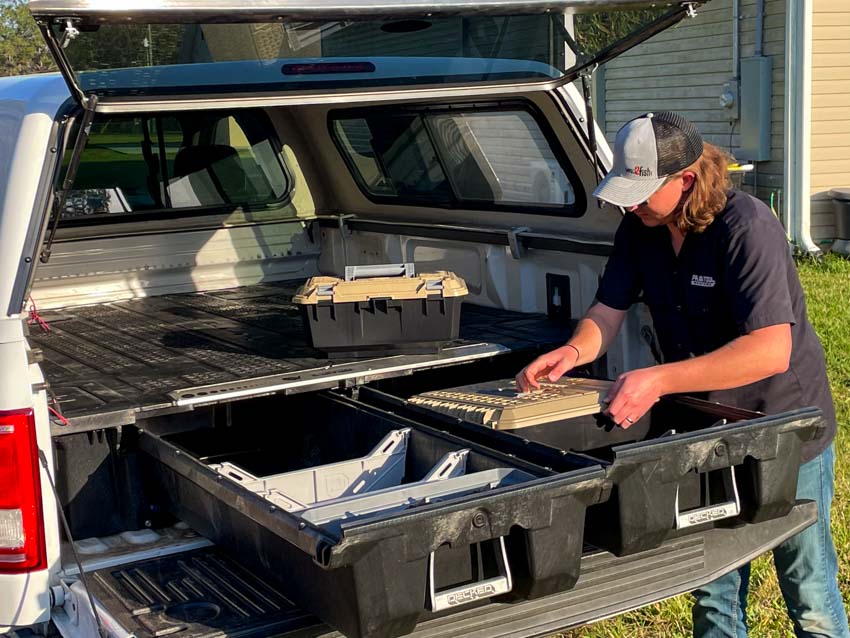

Most of us buy trucks because we need the functionality of a bed for the work or play we engage in. While many of the accessories you can buy take away that function, the Decked Truck Bed Drawer System doesnโt. We connected with local rancher and country singer, Eli Mosely to install one in his truck and see how it stacks up to its claims.
Pros
- 200-pound capacity in each drawer
- 2000-pound capacity on top of the box
- Super-smooth drawer operation
- Optional drawer locks add an extra layer of security
- Wide range of accessories you can add (several included with purchase)
- Limited lifetime warranty
- Made in the USA
Cons
- Drop-in bedliners have to come out prior to installation
- Cannot install with a truck tool box unless you have an 8-foot bed
Want a closer look? Check out our video review!

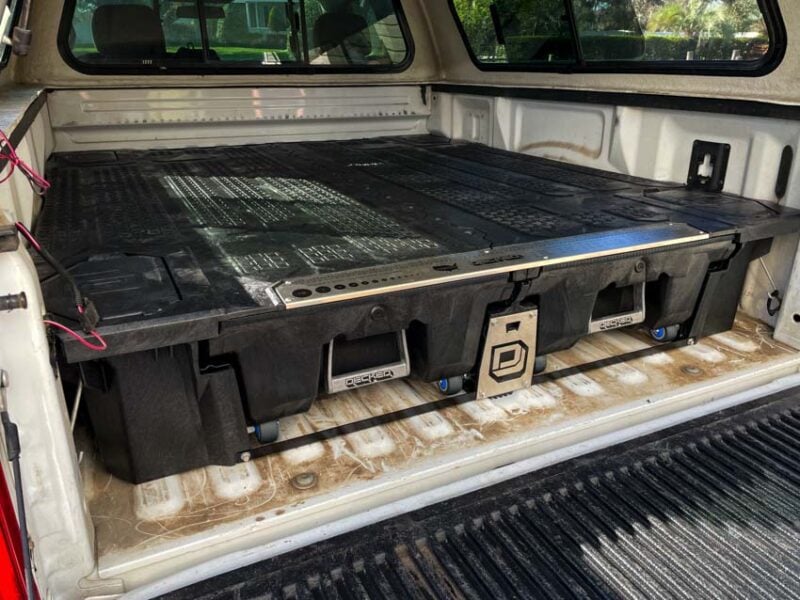

Decked Truck Bed Drawer System Installation
While installation isnโt quite as easy as Deckedโs Truck Tool Box, itโs not very difficult. The drawer system weighs more than 200 pounds, so you definitely want some help, though.
Each box is specifically designed to fit the truck and bed length you have, so be sure you select those when youโre shopping. Because of the fit, any drop-in bedliner your truck has needs to come out. Spray-in liners are fine.
There is some assembly required. Itโs not terribly complex and Deckedโs instructions are good. However, give yourself a couple of hours to work with.
Once the assembly is complete, team-lift the drawer system in and slide it all the way back. We waited to install the drawers until the frame was inside and that worked great.

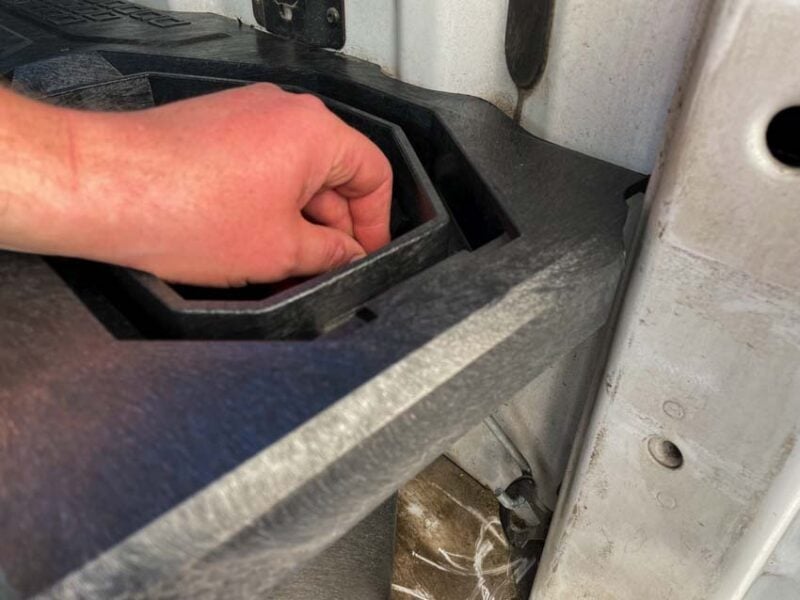

Each Ammo Box has access and a through-hole to reach the tie-down points on your truck bed. Decked supplies J-hooks to secure each cornerโtighten them down and youโre ready to roll.
For most trucks, thereโs no need for any drilling. However, you may want to drill holes in the bottom of each Ammo Box for draining. The truck we installed our system on has a good topper, so we decided to skip that step.
Decked Truck Bed Drawer System Design

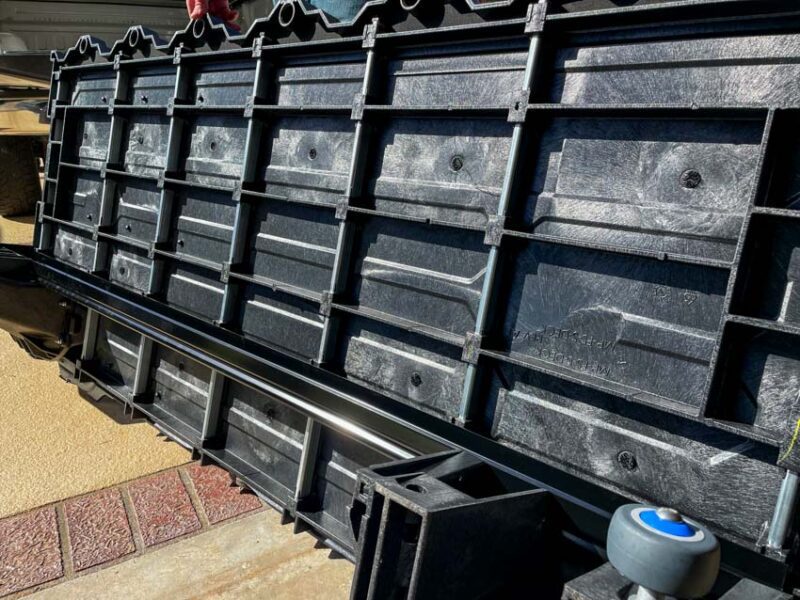

Materials and Construction

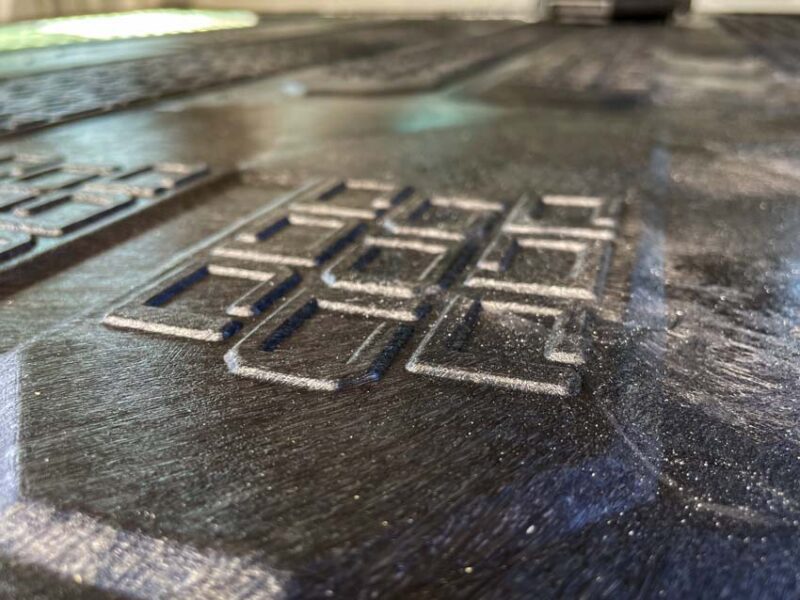

Decked uses HDPE as the primary material and it comes from recycled sources. They add carbon black coloring to keep the look consistent along with some UV inhibitor to protect it.
From there, corrosion-resistant steel and some aluminum reinforce the box for additional strength.
The way it all comes together is weatherproof, but not fully sealed to the point of being water/dustproof. While your gear will stay dry in the rain, itโs possible for dust/mist to get in or water if youโre spraying directly at the drawers from the side.
Space Considerations
The whole point of using the Decked Truck Bed Drawer System is to gain truck bed organization without losing the actual bed function. So how well does it do that?
The system takes up 12 inches of height in the base of your bed. If you have a tonneau cover or topper, you lose some vertical storage space. With accordion-style tonneau covers, thereโs a good chance you wonโt be able to fold it up, so keep that in mind.

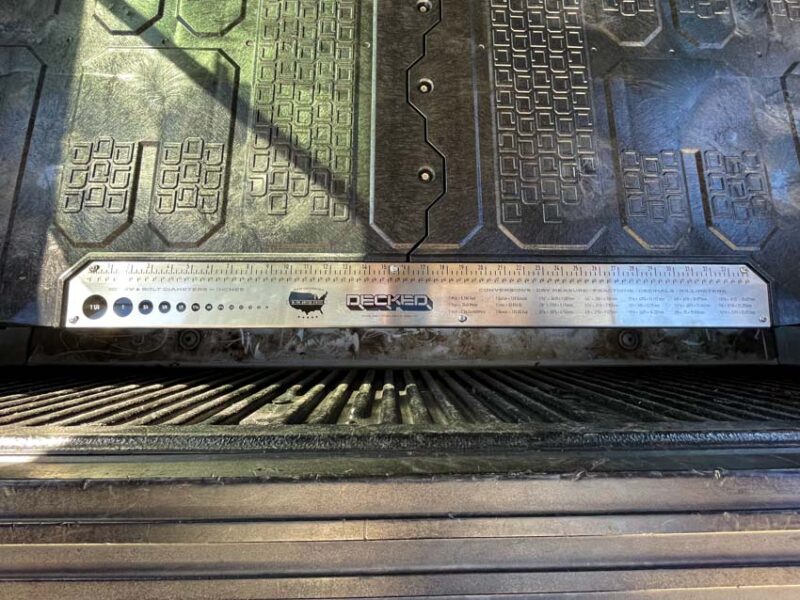

As an elevated bed, the design does a great job of maximizing the space, so you donโt lose much. Thereโs a 3-inch gap between the drawers and the tailgate, but thatโs it.
The good thing is that the metal reinforcement of the outer shell means you can put up to 2000 pounds of gear on top of it. You read that correctlyโit can hold a literal ton!

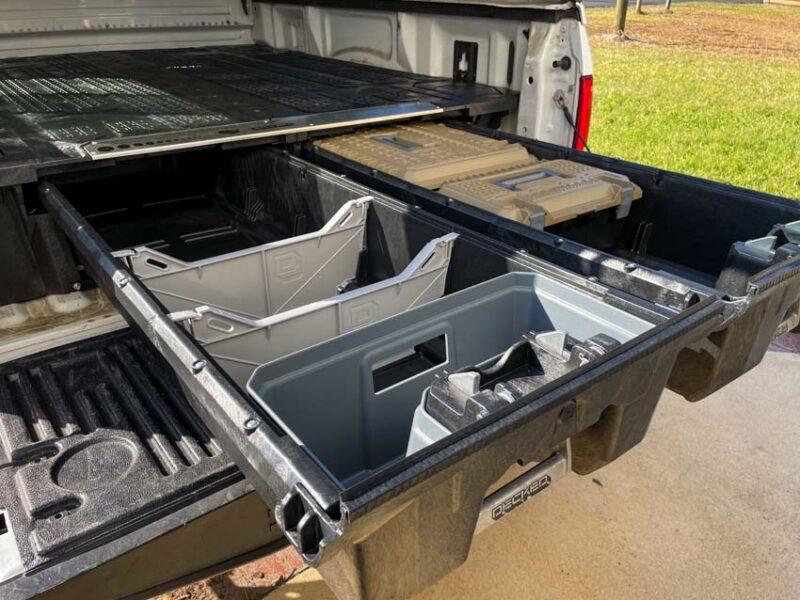

Drawers
Shifting to the drawers, Decked uses a urethane wheel system rather than drawer slides. Itโs a design that eliminates some of the sticking or derailing that comes over time with drawer slides. Considering this lives in the back of your truck with a variety of forces on it, thatโs a smart call.
Whatโs interesting about the wheels is that the more weight you have in the drawer, the smoother they roll. Thatโs the joy of quality sealed bearings. As long as weโre on the subject of weight, each drawer is rated to hold 200 pounds of gear.

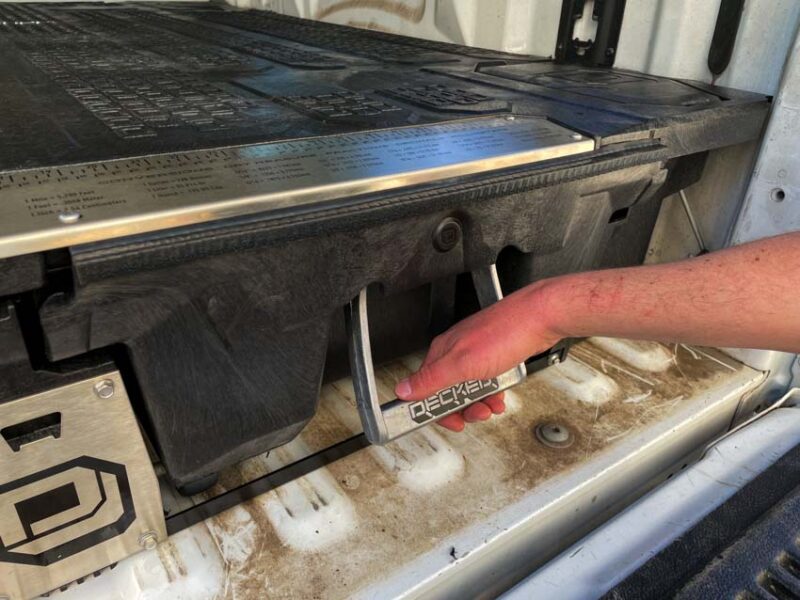

The drawers slide open most of the way, but they donโt come completely out. When you get to the end, you feel a detent nudge into place. If youโre parking on a slope, it helps keep the drawer from sliding back closed. When you close the drawers, the spring-loaded handles securely keep them from sliding open.
As for security, you have a couple of layers. The first is your tailgate. With it closed, thereโs not enough room to open the drawers and access your gear. If you have a locking tailgate, itโs an extra layer of security that is tough to beat. The second comes from optional drawer locks you can add for $50.00. By default, Decked includes plugs for them for the lock holes.
Even the box height itself is an advantage. Because the system sits down in the bed, most passersby wonโt even know itโs there when the tailgate is up.

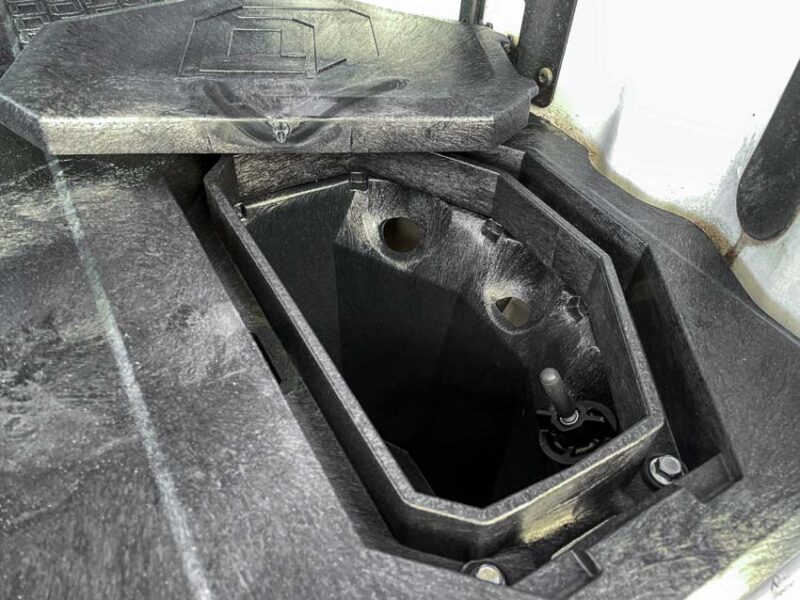

Ammo Cans
In the corners, there are what Decked calls Ammo Cans. Thatโs actually a little bit of a misnomer because theyโre not weatherproof. Itโs certainly handy to have the additional storage, though. Just make sure anything you put in them can get wet without causing problems.
Can I Use the Drawer System With a Truck Tool Box?
In some cases, you can have both the drawer system and a truck box together. However, you need an 8-foot bed to pull it off. Standard and short bed options donโt have enough space.
If youโve seen Deckedโs CargoGlide, they do make a Drawer System-compatible model you can add.
Decked Truck Bed Drawer System Price
The base drawer system runs $1449.00, comes with a limited lifetime warranty, and is a Made in the USA product. It comes with several accessories:
- Crossbox (Desert Tan)
- D-Box (Desert Tan)
- Drawerganizer
- 2 x Drawer Dividers
Hereโs a quick tip for you: if you want additional accessories, order them at the same time as the drawer system. Decked will pack them in the drawers for you, and you wonโt have to pay additional shipping.
The Bottom Line
Between its well-thought-out design, load capacity, durability, and ease of use, the Decked Truck Bed Drawer System earns two big thumbs up from our team. It masterfully accomplishes its goal of adding organization without losing the functionality of your truck bed. The design team clearly put a lot of effort into anticipating the needs of truck owners and its Made in the USA production adds to its appeal.
