Johnson Digital Level Gets an Upgrade with Programmable Features

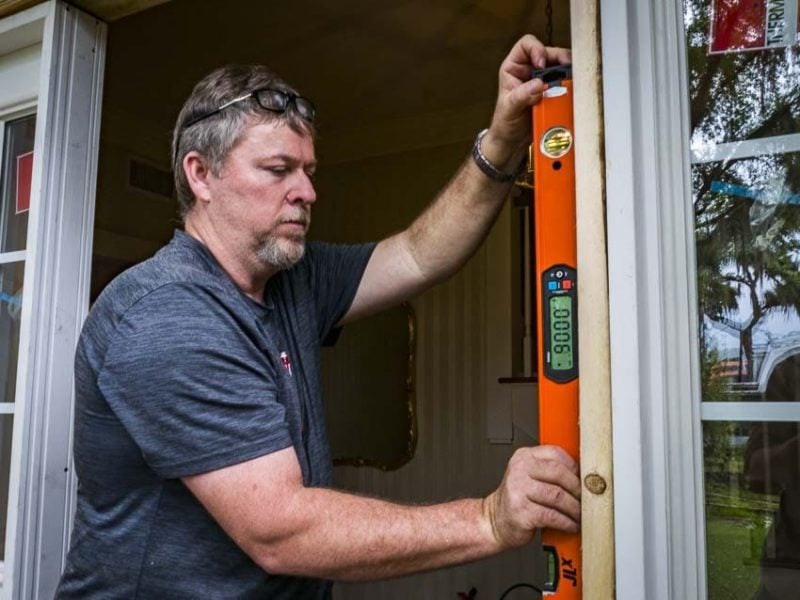

The 48-inch 5700-4800D Johnson digital level is a tough and accurate tool whose hi-tech features function as an apprentice. Iโve used it to rebuild the roof of a carport, set a new door in an old house, and much more. If youโre in the market for a digital level, this is one you need to take a look at.
Pros
- High accuracy at 0.05ยบ/0.10ยบ
- Extra large, easy-to-read level vial
- Pre-programmed measurements for the common applications
- Customizable angles and alerts
- Simple operation with just three buttons
- Itโs easy to see at least one of the two backlit LCD displays on the front and top from any working angle
- IP65 rated
- End caps are easier to remove than most levels
Cons
- The audible level and plumb alerts are a function the levelโs excellent accuracy (a great thing!) but you might get annoyed with the beeping sound before you can get (and keep) your work in that tight ยฑ.05ยฐ tolerance.
Performance
Accuracy
The accuracy on this level is next level. At 90ยบ and 0ยบ, itโs +/- 0.05ยบ and +/- 0.10ยบ at every other angle. To put that in perspective, the baseline accuracy we want on any Pro level is 0.0005 in/in. Thatโs +/- 0.18ยบ, making the Johnson Programmable Digital Level nearly twice as accurate in most cases and more than three times more accurate at 0ยบ and 90ยบ.
Johnson isnโt alone with this level of accuracy โ Stabila and Bosch hit the same mark at 0ยบ and 90ยบ with their digital levels.
Whatโs Your Angle?
Right out of the box, my Johnson digital level was perfectly calibrated. I didnโt have to adjust a thing. The level scored another early win on a roof repair when it found the truss angle with very little effort. I had replacement trusses ordered in no time.

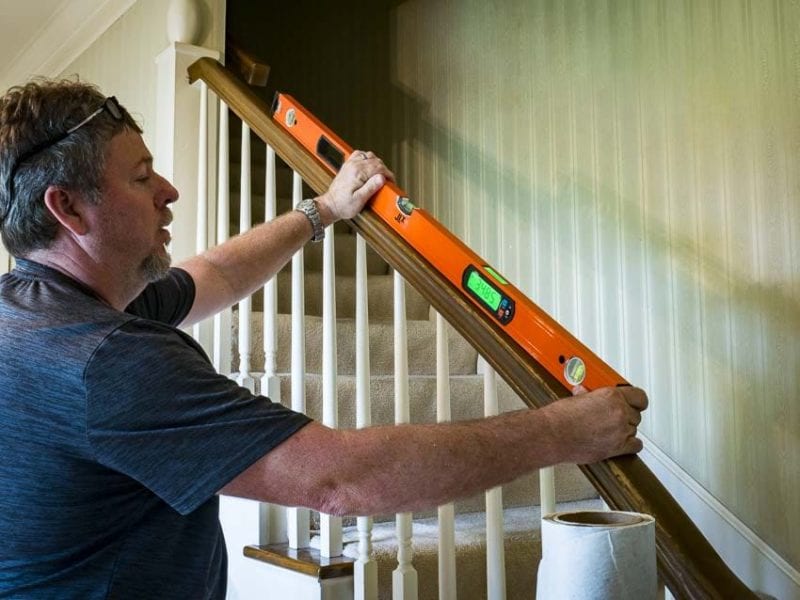

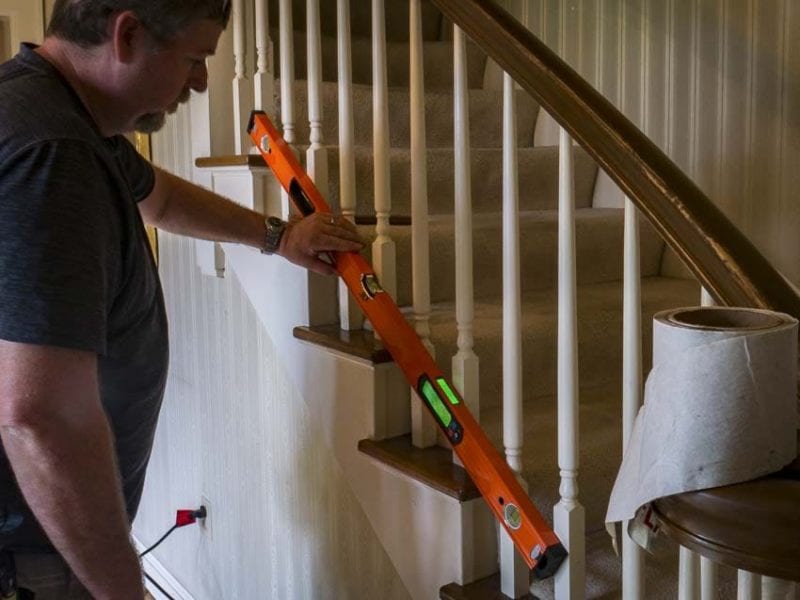

This isnโt my first digital level so Iโm not starting the learning curve from scratch. I didnโt have any staircase work during the review period, but the 5700-4800D will come in very handy when I do. Iโll use it to find the proper banister. But most helpful is using it to get the volute and up-ramp angles right.
High Alert
Turn on this Johnson digital levelโs audible alert to guide you to level or plumb. Itโs very accurate, but thereโs a caveat โ itโs a bit tricky to get the beeping sound to a solid tone that indicates perfection.
When I look at either of the excellent LCD displays and see that itโs perfectly level, the solid tone is behind. When you rely on just the tone, it causes you to keep moving the level a little too far. Just be sure to double check the digital readout to make sure youโre good.
I turn the alerts off and just use the LCD screens for most tasks. However, for those tasks โ like shimming cabinets to level โ where itโs difficult/impossible to adjust the workpiece and look at the bubble, this audible alert is worth its weight in gold. Youโll just need to adjust slowly to get it right.
On The Bubble

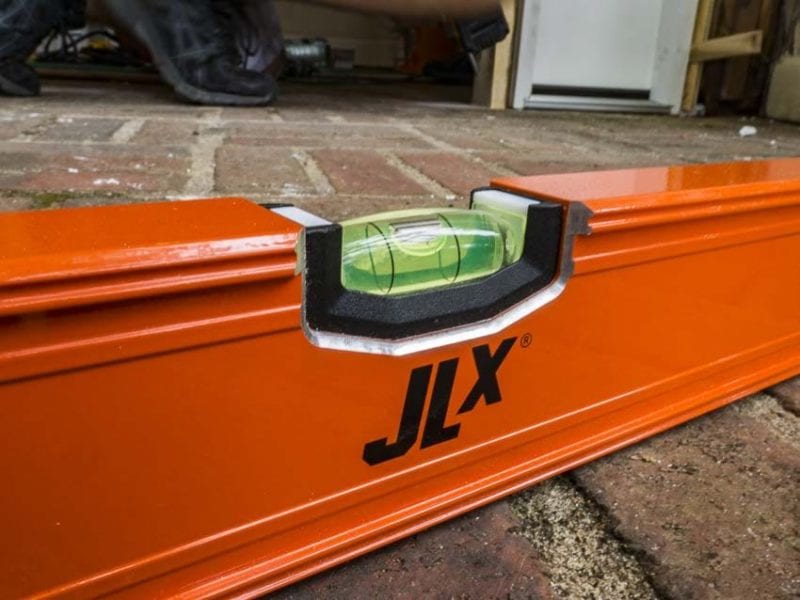

The 5700-4800Dโs main vial is wonderfully oversized like the one on myย Sola level. It eases the burden of time on the olโ eyeballs.

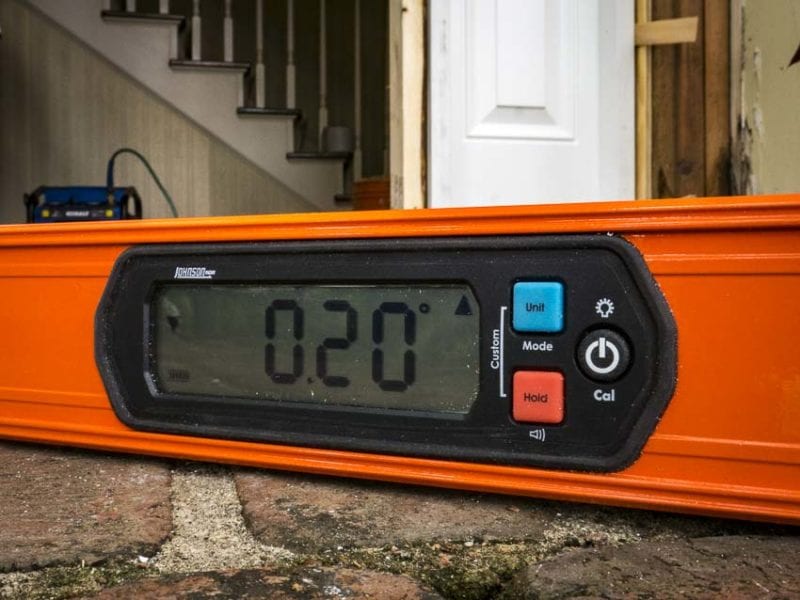

โMission Controlโ consists of just three buttons. These cycle you through pre-programmed angles, setting custom angles, units such as inches per foot, the audible alert toggle, and power. As far as learning curves go, this oneโs pretty easy.

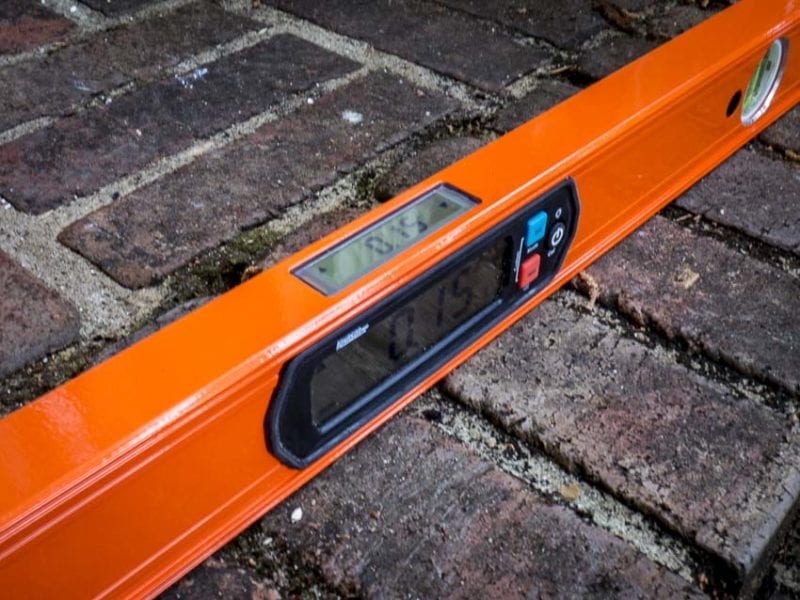

The handiness of the digital top-view window is definitely a highlight. Itโs great for overhead work or any other angle that blocks the main side screen from view. The main screen inverts when you flip it upside down โ also great for overhead work.
The body has both a hanging hole and a handhold which we use to hang the level from ladder hooks.
Finally, the endcaps are not just an afterthought like they seem to be on so many levels โ even high-end ones. Most of the time, you have to push in the endcap โbuttonsโ on both sides of the frame. But you can remove the Johnson digital levelโs robust endcap with just one button. It makes it easy when you just need a skosh more space to fit your level or get perfectly flush into the corner.
Features
Vials

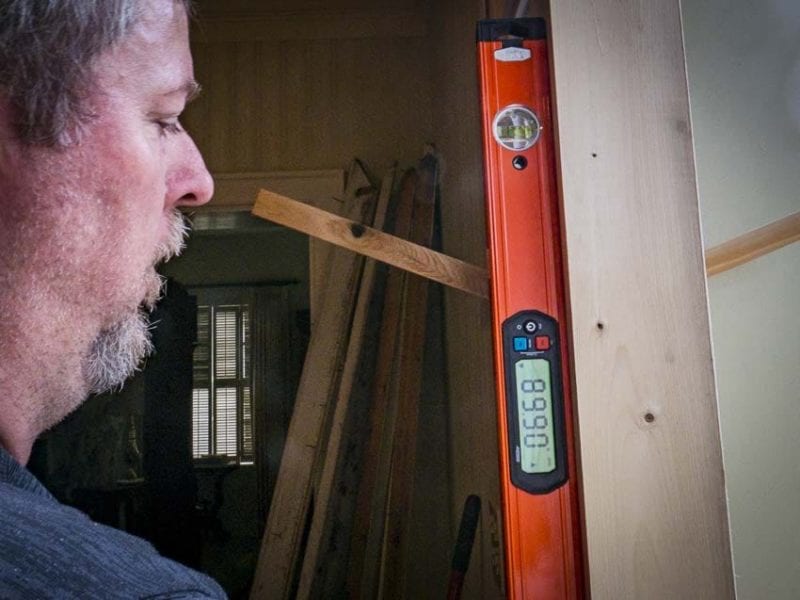

The 5700-4800Dย Johnson digital level has two plumb and one level vial in the traditional setup. Both plumb vials are normal size and encased in an acrylic block for protection. The main level vial is oversized for visibility โ a feature thatโs becoming more common.
Pre-Programmed and Customizable Angles
Set the Johnson 5700-4800D up to find drainage, ADA compliant, or custom slopes with a couple of button presses. This saves a great deal of time for repeating angles.
LCD Display
A top-view LCD display complements the larger LCD display on the side. Both are backlit and feature arrows that direct you toward level or plumb. Two AA batteries power the level for up to 150 hours of continuous use!
Multiple Sizes
If a 48-inch level is too long, you can also get a Johnson Programmable Digital Level in 24-inch or 10-inch torpedo lengths.
Price
At ~$184, the 5700-4800D falls mid-range with the competition. Carpenter-favorite Stabila has the comparable model 36548 for $290. Empireโs e105.48 digital version comes in on the low end at about $130.
The Bottom Line
The only drawback on Johnsonโs Programmable Digital Level is that the audible alert is a touch behind the LCD screenโs reading. Thatโs easy to forgive considering the levelโs accuracy, visibility, programming features, and durability are outstanding. If youโre looking for a digital level in a 10-, 24-, or 48- size, take a good look at Johnson.
Johnson Digital Level Specifications
- Item Number: Johnson 5700-4800D
- Accuracy: ยฑ.05ยฐ at 0ยฐ and 90ยฐ, 0.10ยฐ at all other angles
- Working Range: 0ยฐ to 90ยฐ
- Resolution: 0.05ยฐ, 0.125โณ, 1/8โณ, 1.25 mm, 0.1%
- Battery Life: 150 hours
- Power Supply: 2 AA Alkaline Batteries (not included)
- Working Temperature: 14ยฐF โ 122ยฐF
- IP Protection Class: IP65
- Warranty: Limited Lifetime Warranty
- Price: $184
