The number of Pros who have burned up a drill motor by trying to mix with it is roughly equal to the number of Pros that have ever mixed material. Until recently, there havenโt been many good options for cordless mixing, so we all just kind of settled in and thought โsomedayโฆโ With the Milwaukee 2810-20 M18 Fuel Mud Mixer, the wait is over. Or is it?
Certainly, the function of a mixer is simple enough, but can Milwaukee muster enough strength from their M18 battery platform to make it work? Thatโs the question weโre in the process of answering currently, but letโs start with a look at the toolโs overall design.
Simple Tool, Versatile Features
Brushless Motor
One of the reasons a cordless drill is tough to use for mixing is that the gearing is all wrong. At best, you can work in low-speed/high torque mode. But even if you use the variable speed trigger to keep the RPMs down, the motor still struggles to keep up with the constant load. A brushless motor helps, but youโre still likely to hit thermal shutdown before you finish the first bucket.
The Milwaukee 2810-20 M18 Fuel Mud Mixer takes advantage of a larger brushless motor so it has the electronic communicationย it needs to protect itself and the muscle to mix as a primary function.

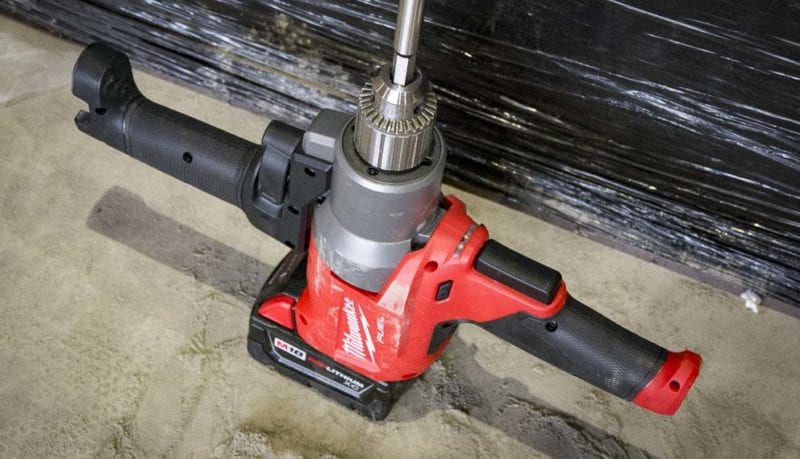

Powering that motor is an M18 battery (5.0 AH if you buy the kit). The pack orients in a way that you can set the mixer to stand on it, even when you have a paddle installed.
Variable Speeds

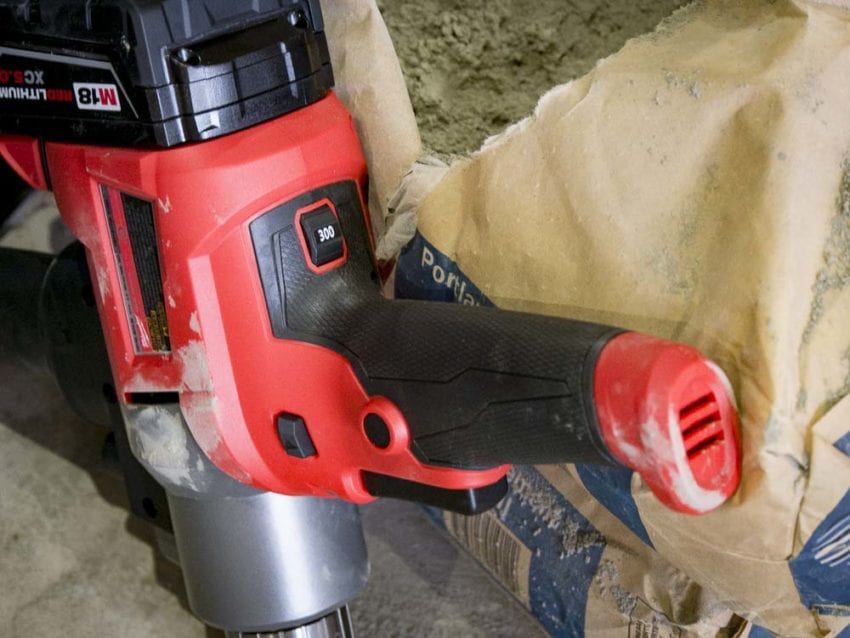

The Milwaukee cordless mud mixer has several ways to adjust or maintain speed. Thereโs a handy variable dial with RPM markings rather than just speed 1 โ 8. Its position allows you to adjust speeds on the fly with your thumb.

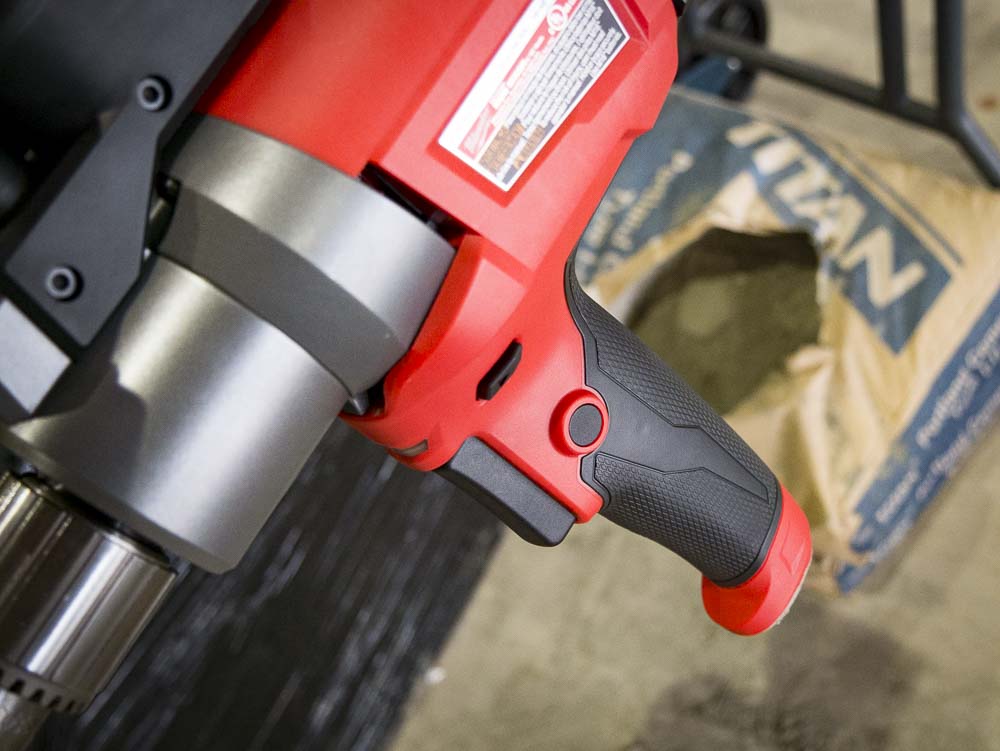

The trigger is a variable speed design thatโs large enough for two fingers to fit on it comfortably. Since mixers tend to stay under load much longer than other drills and drivers, itโs an importantย feature to help keep finger fatigue low.
But realistically, most of us will turn to the lock-on button when mixing. Again, itโs to help avoid the fatigue that sets in from both controlling the mixer and keeping the trigger down. Itโs a nice feature to have, but I would like to see the button stick out more or for it to be larger. Itโs rough on an ungloved hand and really tough to activate with gloves on.

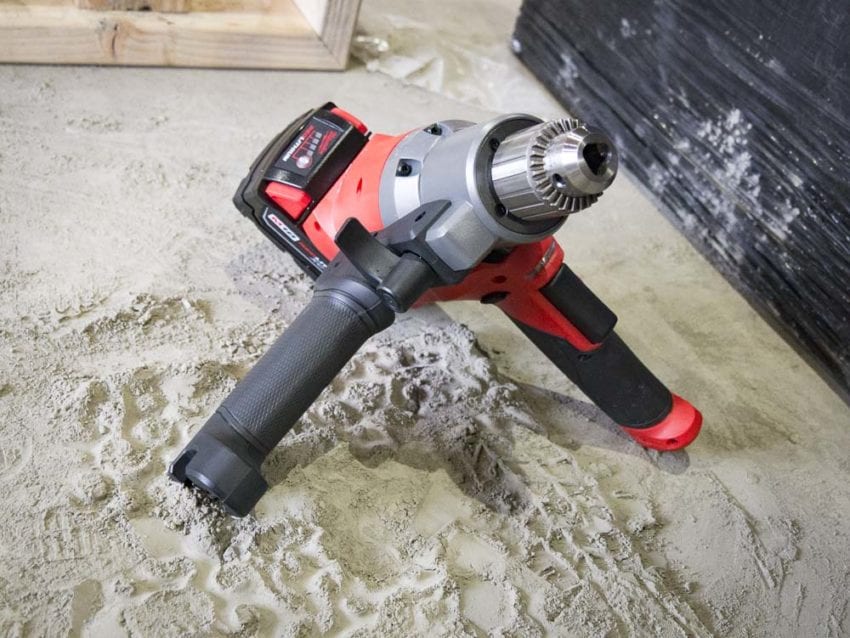

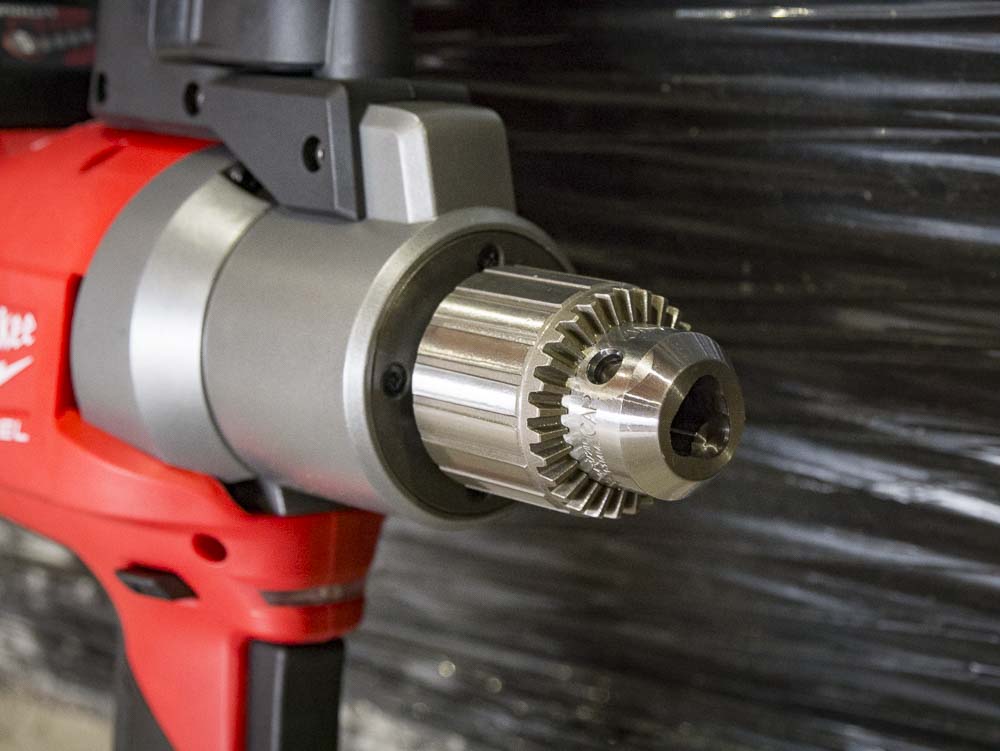

Keyless Chuck
You might be a little disappointed to find that thereโs no keyless chuck on this model. With keyless chucks being so prevalent in the industry now, itโs a bit of a surprise to see Milwaukee go with a keyed system. But again, the load on a mixer is very different than the load on a cordless drill. Itโs possible โ and even probable โ that Milwaukee found too much paddle slippage during testing to go with the keyless chuck.
At least it stores on board and out of the way on the end of the left handle.

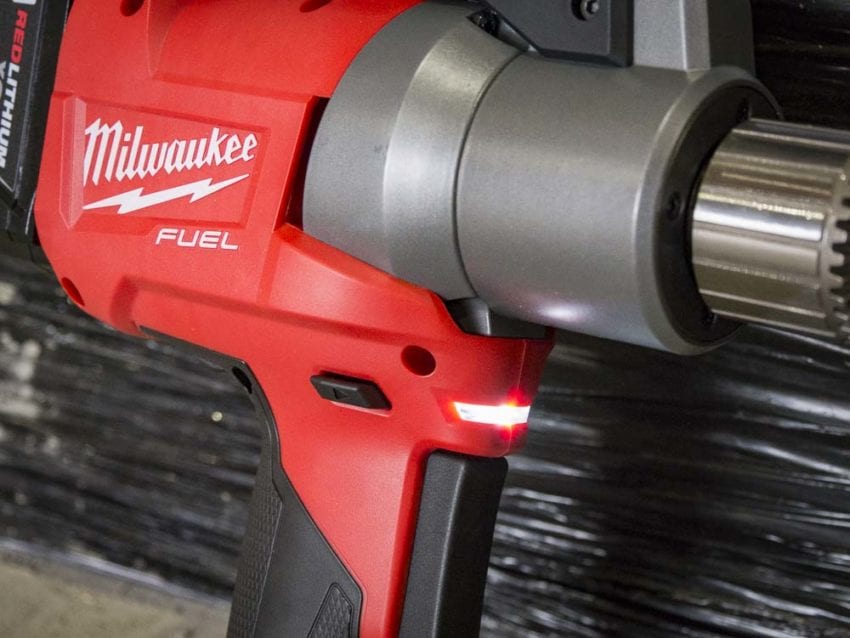

LED Light
An LED light on a cordless mud mixer? I donโt know how necessary this one is. However, itโs a simple addition even if you only need it 1% of the time. If itโs going to be dark enough that I need the light on the tool, Iโm probably already using Milwaukeeโs Redlithium USB headlamp.
Milwaukee 2810-20 Handle Design

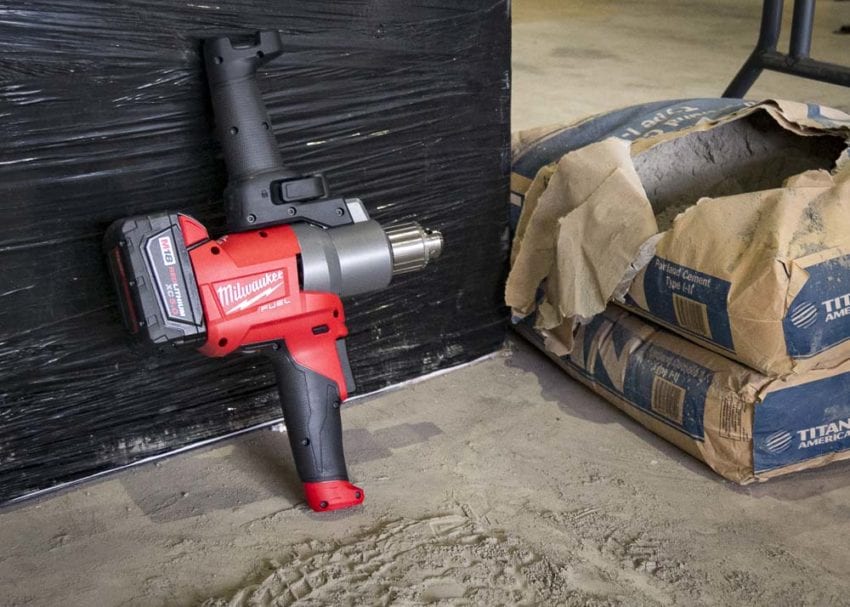

Probably the biggest talking point on the Milwaukee M18 Fuel Mud Mixer feature set is the handle. And thatโs for a couple of different reasons. Weโve seen a couple of other mixers use D-handle designs on either side. One of those is from a brand that prides itself heavily on ergonomics, so we have to ask the question as to whether Milwaukeeโs dual pistol grip is the way to go.
And thereโs not a great answer to that question โ itโs going to come down to preference. For me, the D-handle is a little more comfortable, but I feel like I have more control with Milwaukeeโs pistol grips. Even though I canโt give you a conclusive answer on the style choice, I would like to see the handles a bit longer. With a pistol grip, the closer you can get your hands to shoulder width, the more natural the grip with feel.

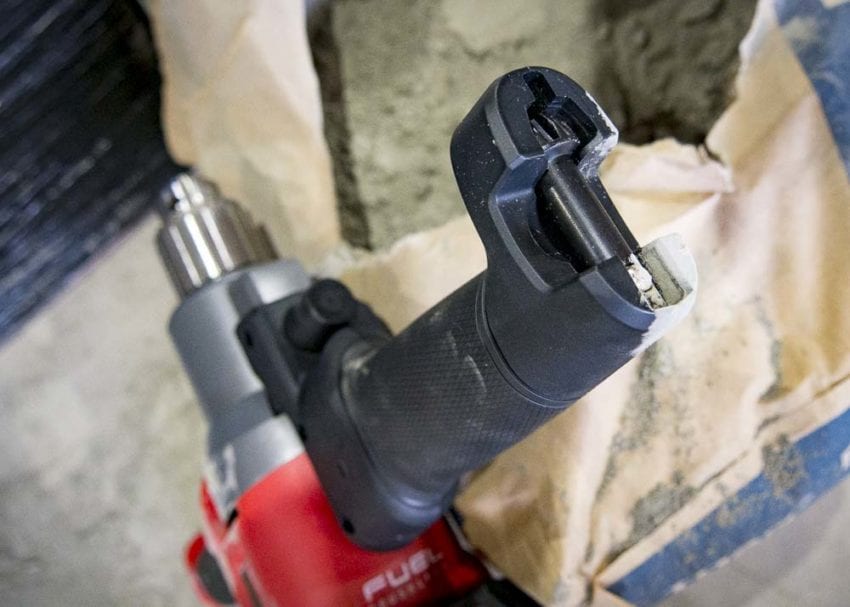

Another benefit of the pistol grip design is that Milwaukee can make it more versatile. With a lever lock on the left handle, it can rotate 180ยฐ. You can dial in an angle that works well for you or simply adjust it based on the application at hand.
Performance

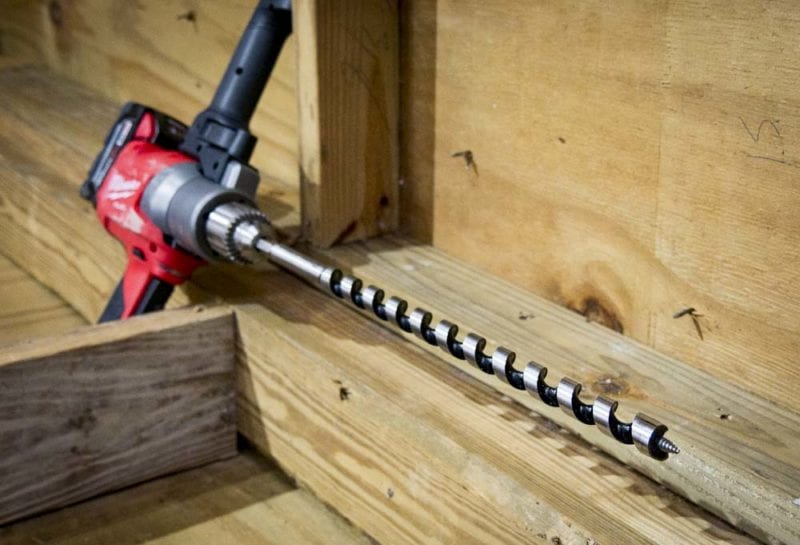

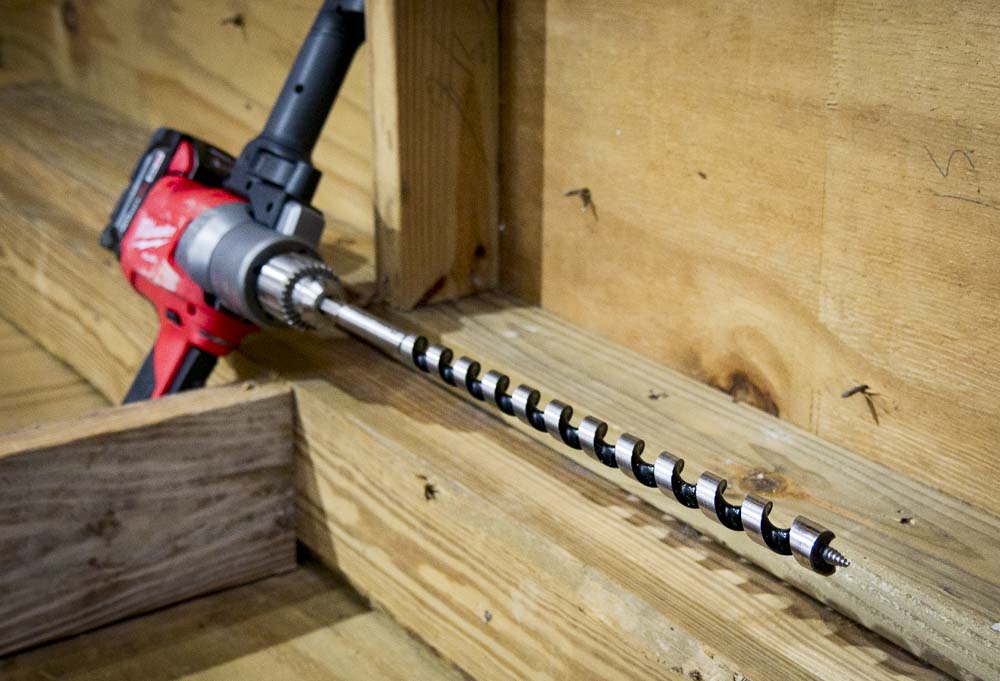

The maximum speed you can work up to is 550 RPM, which is fine for mixing. You can also use the Milwaukee 2810-20 M18 Fuel Mud Mixer for drilling in wood, metal, PVC, or composite materials if you really need to. Itโs obviously not going to be a high-speed drill, but you can use it as an alternative to a Hole Hawg when a lot of torque is more important than the drilling speed. Thereโs enough muscle in the motor that itโs very effective in this regard.
Understandably, the mixerโs physical design isnโt as optimal as a Hole Hawgโs for that kind of work, but the adjustable handle angle helps.
We havenโt done a ton of mixing with denser materials just yet, but we like what we see so far. On the lighter side of mixing, thereโs no doubt that the Milwaukee M18 Fuel Mud Mixer is very capable. But the asterisk we have to put on it at the moment is that we still need to use it for heavier mixing to know how well it will do in medium to heavy-duty mixing applications.
What can tell you is that Milwaukee rates it for drywall mud, stucco, thin set, mortar, and epoxy in addition to drilling in wood, metal, and composite materials. None of our testing so far indicated that any of these will be a problem.
The Bottom Line
For what is typically a simple tool, the Milwaukee M18 Fuel Mud Mixer adds some features that make the tool more convenient to use. Itโs likely the most intense discussion will be over the use of pistol grip handles over a D-handle. While I can tell you to consider the difference between mountain bike and road bike handlebars, itโs not much help and really comes down to preference.
There are a couple of tweaks Iโd like to see in Gen 2. However, itโs a solid tool that has the benefits of an intelligent design that keeps it a bit more compact than its competitors out there. While we like the performance weโve seen so far, thereโs still more testing to do before we can really dial in which materials weโre confident you can tackle cordlessly.
At $349 for the kit with a pair of 5.0 Ah batteries, the cordless convenience carries a premium over corded models. But if youโre set on M18 batteries, the bare tool is $199 โ much closer to corded Pro models.
Milwaukee M18 Fuel Mud Mixer Features
- Power to mix heavy compounds, such as concrete and mortar
- Ultimate Speed Control: 3 different way of controlling speed for clean and consistent mixes
- Up to 15 buckets per charge with 5.0 AH battery (5-gallon buckets)
- 180ยฐ adjustable handle with 16 adjustable settings for userย to optimizeย based on comfort and performance
- 1/2โณ keyed chuck (on tool storage for key)
- LED light
Milwaukee 2810-20 M18 Fuel Mud Mixer Specifications
- Model: Milwaukee 2810-22 (2810-20 bare)
- Power Source: Milwaukee 18V battery
- No Load Speed: 0 โ 550 RPM
- Length: 16.6โณ
- Height: 9.3โณ
- Width: 3.3โณ
- Weight: 7.7 lbs
- Warranty: 5 years
- Price:ย $199 (bare),ย $349 (kit)ย
