Milwaukee SwitchBlade Self-Feed Bits Let You Switch Instead of Sharpen
We worked with Milwaukee on accessories for our epic best cordless drill head-to-head to cover light and heavy load testing. On the light side, their Red Helix Titanium Twist Bits gave us a benchmark for high-speed work. To put our drills under a heavier load, we turned to Milwaukee self-feed bits, particularly their SwitchBlade bits that give you the ability to change the blade instead of the entire bit.
Milwaukee Self-Feed Bits Design
Replaceable Blades

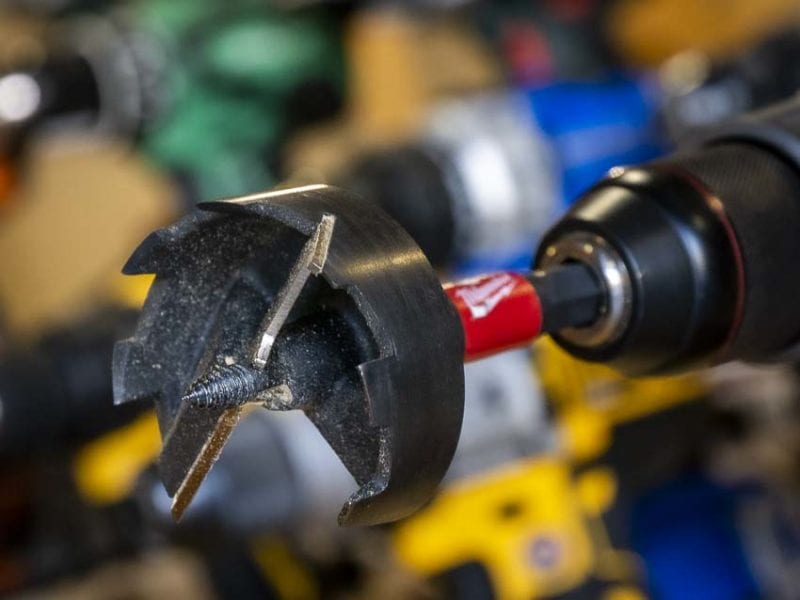

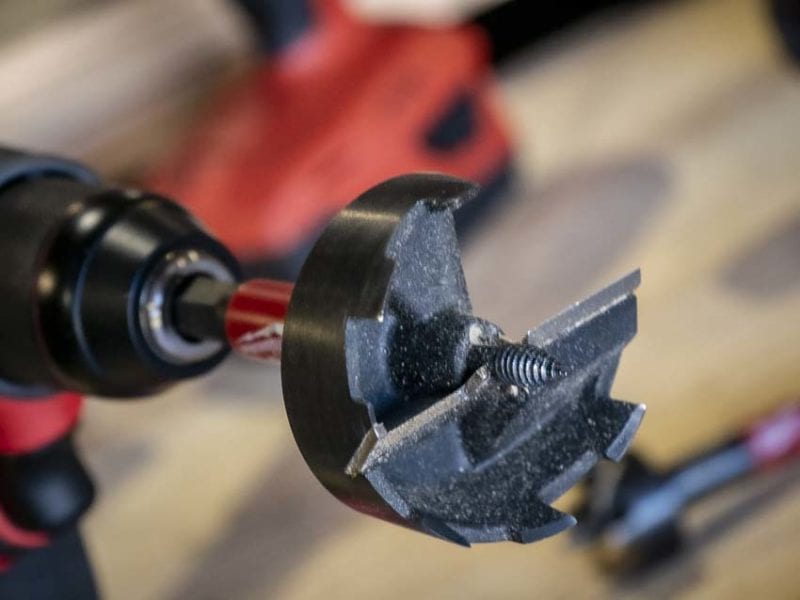

The dominant feature on these Milwaukee self-feed bits is the replaceable blade. Self-feed bits arenโt cheap, and many Pros sharpen them several times before tossing them. Milwaukee SwitchBlade bits let you do away with sharpening and just swap out the blade.

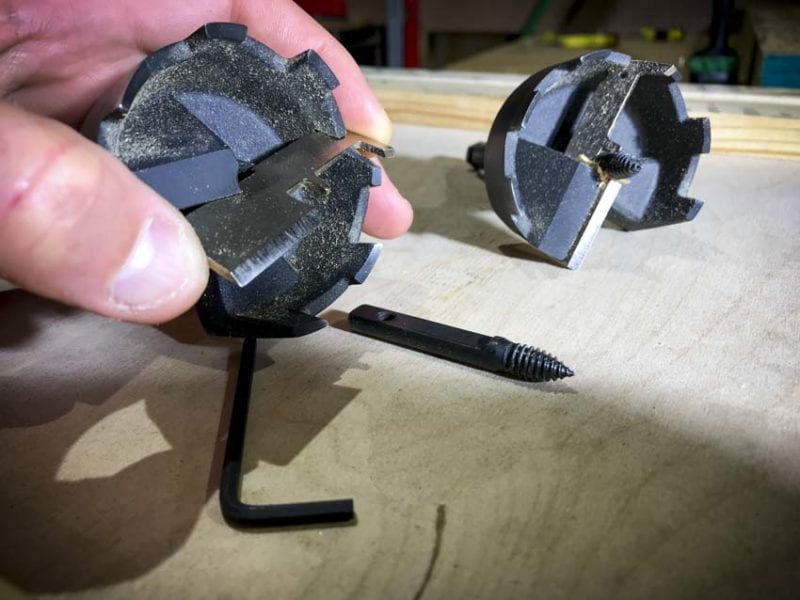

Making the switch is pretty simple. Grab a 3mm hex wrench to remove the set screw on the shaft. That releases the threaded feed bit that slips straight out. Once itโs out of the way, you can pull the blade out and change it for a new one. Slide your feed screw back in, tighten the set screw down and youโre ready to go. In practice, it takes about 45 seconds without rushing.
Replaceable Feed Screw
Feed screws donโt need to be replaced as often as the cutting blades, but the design allows for that, too. Itโs another easy swap since removing it is already part of the blade replacement process.
Additional Features
- 7/16โณ hex shank
- Inside cutting plane smooths out holes
- 1-3/8โณ to 2-9/16โณ diameters available.
Performance
We set up a pretty aggressive test series using OSB subflooring to give us consistent material. Between it and gluing up the layers, itโs a much tougher material to drill through than untreated SPF or other softwoods.
With that material choice, nearly every drill we tested had to work at low speed with a 2-9/16โณ Milwaukee self-feed bit. The exception is Hiltiโs 4-speed monster that was able to make it through in its 2nd gear.
But many Pros that use this type of bit are working rough-ins in softwoods and there are plenty of drills, like the Milwaukee Gen 3 M18 Fuel, that have the ability to make that hole at high speed. Between the horsepower of its brushless motor and a bit thatโs sharp more often because of its simple replacement, youโre getting through that stage of your work faster and without having to turn to a Super Hawg.
One of the major benefits of using a self-feed bit is its self-feeding tip. The threads Milwaukee uses hold well as it pulls the bit through. The cutter designs shave out the sides, leaving a cleaner hole and reducing bit bind up significantly.
In drilling hundreds of holes in our shootout, the only stops we experienced were when the motor shut down because the load was too greatโnot because the bit bound up. We were drilling straight down, and the bind-up risk goes up if youโre attacking at an angle. However, this bit is going to bind up less often than spade bits or hole saws.
Price
Milwaukee SwitchBlade self-feed bits come in 6 common diameters and a set. Theyโre more expensive than other self-feed bits on the market, but their usable life is much longer and you donโt have the downtime and cost of sharpening them. Over their life, youโll save money over standard self-feed bits.
- 1-3/8โณ: $26.29
- 1-1/2โณ: $26.59
- 2โณ: $29.39
- 2-1/8โณ: $29.89
- 2-1/4โณ: $29.89
- 2-9/16โณ: $31.99
- 5-Piece Plumberโs Set: $119.99
Replacement blades vary depending on the size. There are singles, 3-packs, and 10-packs (includes 2 feed bits, set screws, and a hex wrench). Thereโs also a feed bit (2)/set screw (2)/hex wrench set available.
The Bottom Line
Milwaukee SwitchBlade Self-Feed Bits drill efficiently, give you a longer useable life than other self-feed bits, leave a cleaner hole, bind up less often, and save you time and money over the long haul. Theyโre the perfect fit for Pros that do a lot of repeat drilling for rough-ins or installs.
