Milwaukee M12 M-Spector Flex System with PIVOTVIEW Camera Head

The new Milwaukee M12 M-Spector Flex System with PivotView camera head is the latest addition to Milwaukee’s expanding M12 product line. Realistically speaking, this new inspection device is an enhanced version for the M-Spector line. The most notable difference of the recordable inspection camera is the PivotView camera head cable, which gives users more control of the camera for fast positioning.

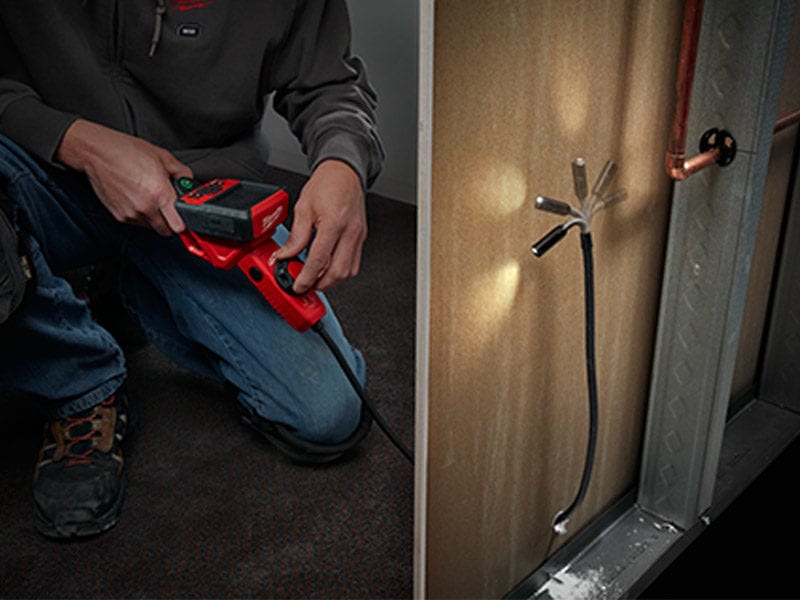

The PivotView camera head can pivot 270 degrees with the turn of a dial. With this capability, the Milwaukee M12 M-Spector Flex System saves time and frustration that stems from working the cable to get just the right angle. There’s an LED built into the camera head to provide illumination. Milwaukee claims to be delivering 15 times the illumination of other cameras on the market.

“Anyone who has used an inspection camera can relate to the frustration of trying to feed a cable just right while watching what is happening on the screen. Whether it’s trying to position the camera head, being able to see further, or keeping the display in viewing position, the M12 M-Spector Flex System solves the biggest challenges that have frustrated users for years – delivering the easiest and fastest way to inspect on the market.”
– Ben Cabot, Product Manager for Milwaukee Tool

The current model of M-Spector digital inspection camera (2314-21) features a 2.7″, 640 x 480 high-resolution color LCD display. Milwaukee is upgrading that to a 3.5″ wireless LCD display console with the same resolution. The display can digitally rotate and zoom on images so you can see what’s behind the obstruction no matter what position you had to put yourself in to get there. Tired of those awkward positions? You can detach the display from the unit to still operate the camera from up to 15 feet away. The Milwaukee M12 M-Spector Flex System can instantly capture images or video with audio from handle or display.

To eliminate the need for extensions that cause bulky, inflexible connection points, Milwaukee M12 M-Spector Flex System offers 9-ft cable option. A 3-ft cable is also available for users that don’t need the additional length. The 12.5mm (.49″) diameter and shortened camera head length results in easier and greater access to tight spaces.

The Milwaukee M12 M-Spector Flex System allows users can easily save and transfer images from the device with the included 8GB SD card or micro-USB connection port. Along with the announcement of Milwaukee M12 M-Spector Flex System with PivotView Camera Head device, 2 other upgraded models without PivotView were introduced as well.

Applications

Remodel inspections
Facility maintenance
Machinery and production lines
Residential or commercial trades where documenting inspections is essential

Available June 2016

Milwaukee M12 M-Spector Flex 3-ft Inspection Camera (2315-21)

Cable Length: 3′
Camera Head Diameter: 12.5mm (.49″)
Camera Head Length: 35mm (1.375″)
Camera Resolution: 640 x 480
Display Type Wireless: 3.5″ LCD
Wireless Distance: Up to 15’
Image Capture: Yes
Video Recording: Yes
Audio Capability: Yes
Brightness Control: Adjustment Dial
Image Rotation: 90⁰
Zoom: 4X
File Storage/Transfer: SD Card, Micro-USB
M12: RedLithium Rechargeable
Includes: M-Spector Flex Console, 3-ft Inspection Cable Camera, SD Card, USB Cable, M12 RedLithium Compact Battery Pack and Charger, Carrying Case
Warranty: 5 Year
Price: $499

Milwaukee M12 M-Spector Flex 9-ft Inspection Camera (2316-21)

Cable Length: 9′
Camera Head Diameter: 12.5mm (.49″)
Camera Head Length: 35mm (1.375″)
Camera Resolution: 640 x 480
Display Type Wireless: 3.5″ LCD
Wireless Distance: Up to 15’
Image Capture: Yes
Video Recording: Yes
Audio Capability: Yes
Brightness Control: Adjustment Dial
Image Rotation: 90⁰
Zoom: 4X
File Storage/Transfer: SD Card, Micro-USB
M12: RedLithium Rechargeable
Includes: M-Spector Flex Console, 9-ft Inspection Cable Camera, SD Card, USB Cable, M12 RedLithium Compact Battery Pack and Charger, Carrying Case
Warranty: 5 Year
Price: $579

Available July 2016

Milwaukee M12 M-Spector Flex 3-ft Inspection Camera with PivotView (2317-21)

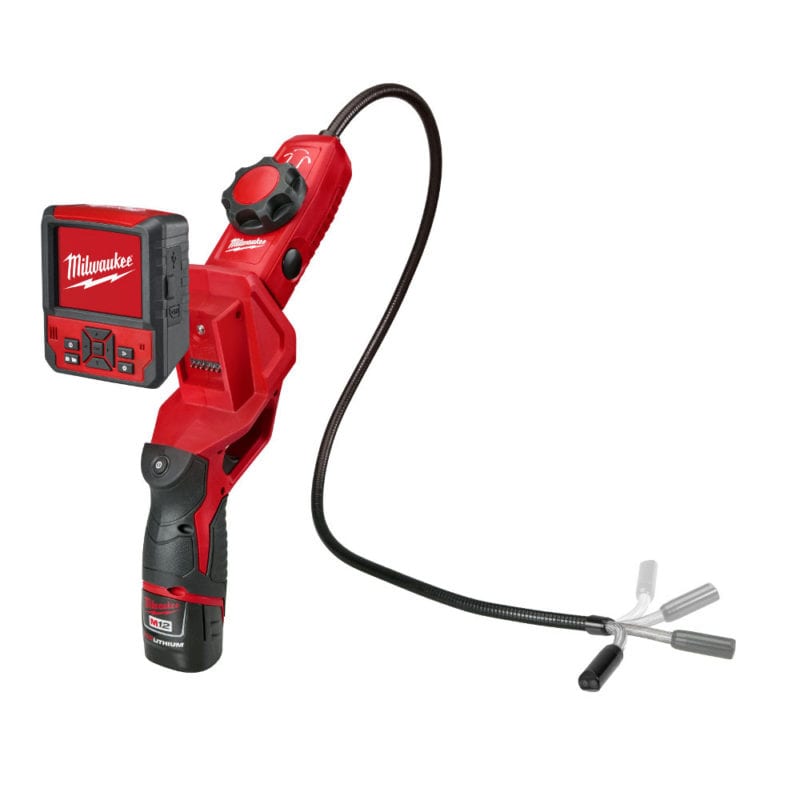

Milwaukee M12 M-Spector Flex System with PivotView Camera Head (2317-21)

Cable Length: 3′
PivotView: Yes
Camera Head Motion: Up to 270°
Camera Head Diameter: 12.5mm (.49″)
Camera Head Length: 35mm (1.375″)
Camera Resolution: 640 x 480
Display Type Wireless: 3.5″ LCD
Wireless Distance: Up to 15’
Image Capture: Yes
Video Recording: Yes
Audio Capability: Yes
Brightness Control: Adjustment Dial
Image Rotation: 90⁰
Zoom: 4X
File Storage/Transfer: SD Card, Micro-USB
M12 RedLithium: Rechargeable
Includes: M-Spector Flex Console, 3ft Inspection Camera Cable with PivotView, SD Card, USB Cable, M12 RedLithium Compact Battery Pack and Charger, Carrying Case
Warranty: 5 Year
Price: $799
