FLIR MSX Technology Boosts Thermal Image Definition With Two Cameras
FLIR MSX Technology isnโt brand new to the thermal camera market. I first saw it on the FLIR C2 and it made a tremendous difference in the quality of the thermal images I use.
10-Second Summary
- MSX: Multi-Spectralย Dynamic Imaging
- One camera takes a standard visual image
- One camera takes a thermal image (usually low resolution)
- The system overlays the two images to give the thermal image additional definition
- More than 25 thermal cameras in FLIRโs lineup have MSX built in
FLIR MSX Stands for Multi-Spectralย Dynamic Imaging
FLIR MSX stands for Multi-Spectralย Dynamic Imaging. I guess FLIR thought MSX sounded cooler than MSDI. But I digress.
If you look at the front of any FLIR MSX thermal camera, there are two cameras in place. Modern cameras that use two lenses create a 3D effect, but thatโs not what FLIR is going for. One camera hits the standard visual spectrum and the other is a thermal camera.
Camera 1 takes a normal photo

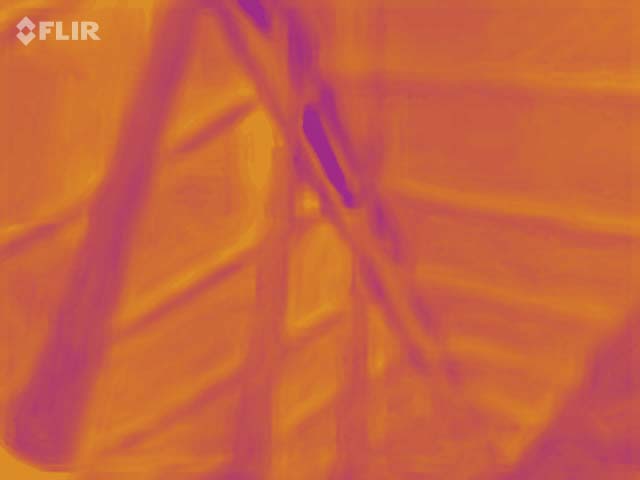

Camera 2 takes a lower-resolution thermal image

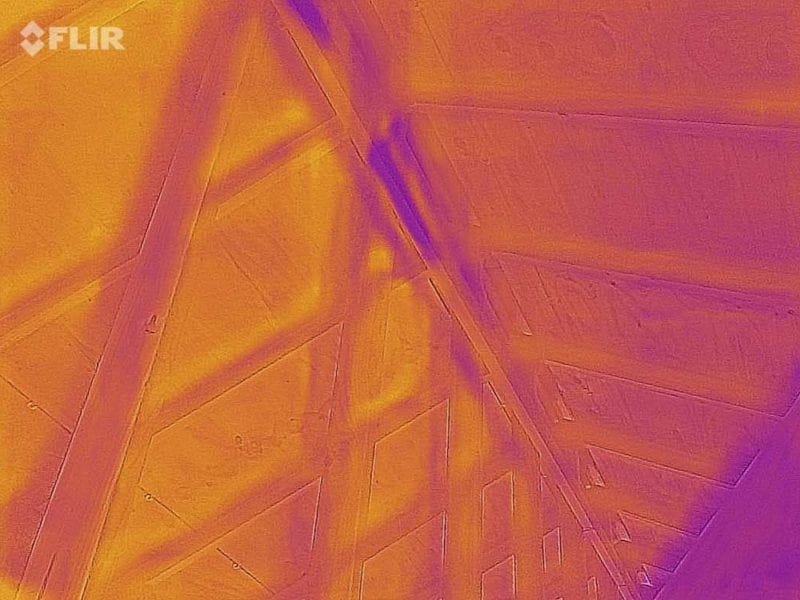

The system uses the visual image to define lines and edges and make the thermal image come to life. This relatively simple idea helps to take a low-resolutionย thermal image and give it greater definition without costing as much as a higher-resolution thermal camera.
To be clear, the thermal image itself isnโt gaining any resolution. Itโs the definition from the visual image that creates an additional layer behind whatโs fuzzy in the thermal image. This makes FLIR MSX technology shine.
One issue with any two-camera system (and the reason you use it for 3D images) is the parallax. Parallax represents the difference between the two images when taking a photo from slightly different perspectives. The most recent MSX cameras offer some parallax correction based on the distance you are from the object. For example, my FLIR One Pro LT can correct from as close as 0.3 meters (about a foot) to infinity.
So when youโre considering low-cost thermal cameras as you enter into the world of thermography, keep in mind that an MSX camera is going to give your thermal images a boost.
FLIR Thermal Cameras for Smartphones
- One Gen 3
- One Pro
- One Pro LT
FLIR MSX Handheld Thermal Cameras
- T-Series: 530, 540, 600, 620, 640, 660, 840, 1010, 1020
- E-Series: 75, 85, 95
- Ex-Series: E4, E4 Wifi, E5, E5 Wifi, E6, E6 Wifi, E8, E8 Wifi
- C2, C3
- E6-XT, E8-XT
