The WAGS Valve is a brand-name product designed to eliminate the risk of and damage caused by flooding when a hot water heater fails to drain properly. WAGS stands for Water And Gas Safety. Some statistics suggest that a majority of water heaters fail within 7-10 years. While that number seems high in our personal experience, statistically about 5 million tankย failures occur every year. Not all of these are catastrophic. However, during these leaks, the water heater keepsย refilling and leaking. This creates a damaging cycle that can go on for some time until it is discovered or remedied.
The WAGS valve works to prevent costly floods and damage to property.
What is a WAGS Valve and How Does It Work?
Theย WAGS valve is designed to shut off the water supply when it detects a water leak. Typically this would come from a hot waterย heater. In this way, a WAGS valve minimizes water damage and, on the enhanced models, possible gas leakage.

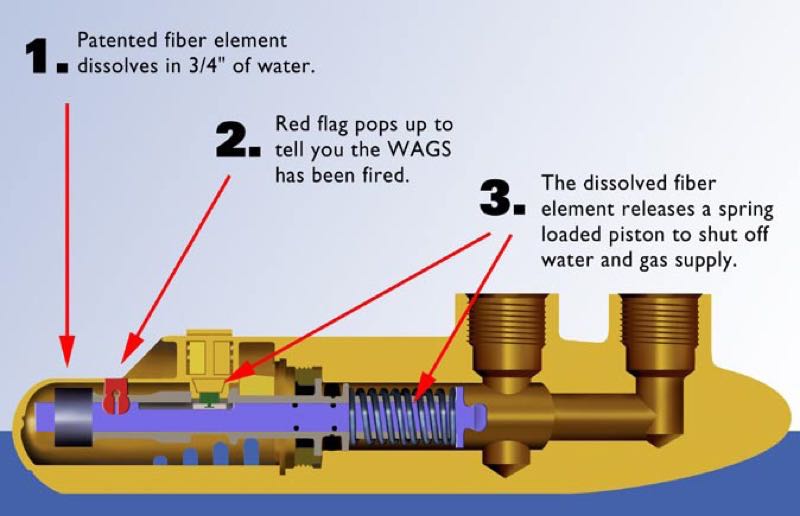

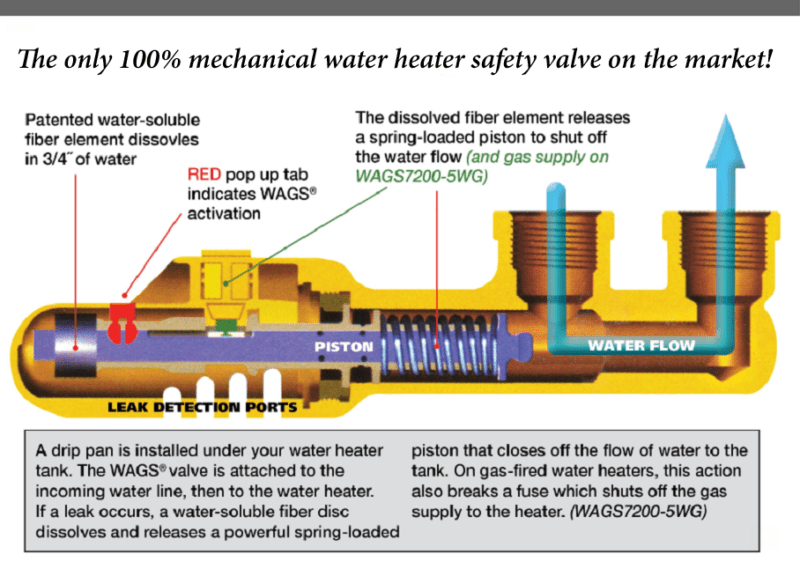

You can easily install a WAGS valve on all styles of water heaters. Itโs fully mechanical and requires no external power supply. If a leak occurs, an internal water-soluble fiber element dissolves, releasing a powerful, spring-loaded piston. This immediately shuts down water flow to the tank.
With the addition of a wiring harness for gas heaters, triggering the valve also breaks a fuse. This shuts off the water heaterโs gas supply as well.
The Internal Mechanism
The valveโs action is based on fiber element technology developed for the British Royal Air Force to inflate life jackets automatically. Once activated, the valve shuts off the water and the gas supply.

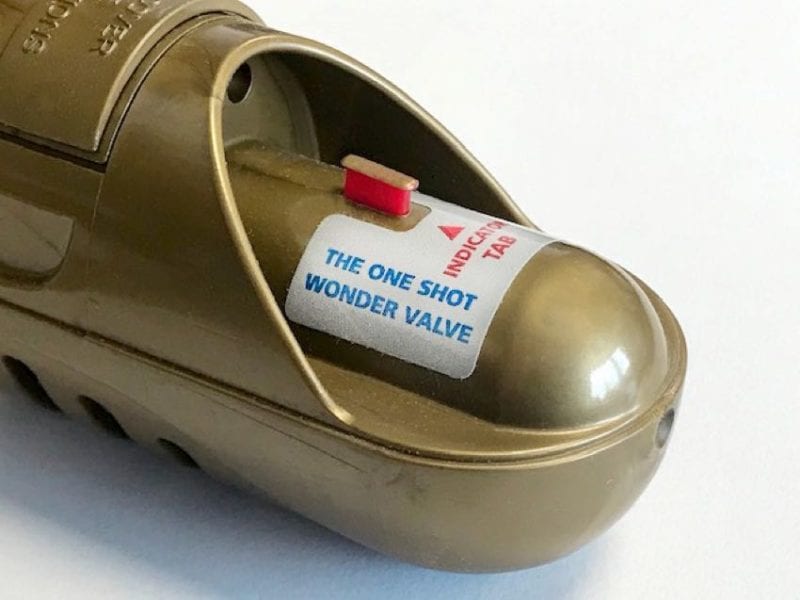

The device even causes a red pop-up tab to emerge. This lets you know an activation has occurred. You need to replace a WAGS valve once it activates. That may seem like a pain if you sweated it in using copper. Considering it stopped a leak, however, that โpainโ may be well worth the hassle and cost of replacing the valve.
Water and Gas Safety Valve vs Smart Leak Valves
| WAGS Valve | Smart Leak Valves | Smart Sensors | |
|---|---|---|---|
| Detection Mechanism | Mechanical fiber element | WiFi or Wired sensor | WiFi or Wired sensor |
| Power Requirements | None | Battery or AC | Battery or AC |
| Installation Requirements | Advanced plumbing | Advanced plumbing | Simple |
| Audible Alarm | No | Yes | Yes |
| Stops Waterflow | Yes | Yes | No |
| Brand Names | WAGS, Aquaguard, Taco | Moen, Streamlabs, Leakbreaker, Taco | SimpleSence, Moen, Samsung, Zircon, Grohe |
| Price Range | $128-$170 | $120-$400+ | $50-$100+ |
Conclusion
The WAGS valve is a very simple, and relatively inexpensive device that could save you tons of money in the event of a water heater leak. Itโs definitely something to consider having installed the next time you replace your tank.
While it involves some more up-front work over a simple sensor, it has the added advantage of actually stopping a leak. When it comes to saving you the hassle of dealing with an uncontrolled water leak the advantages seem very clear.
